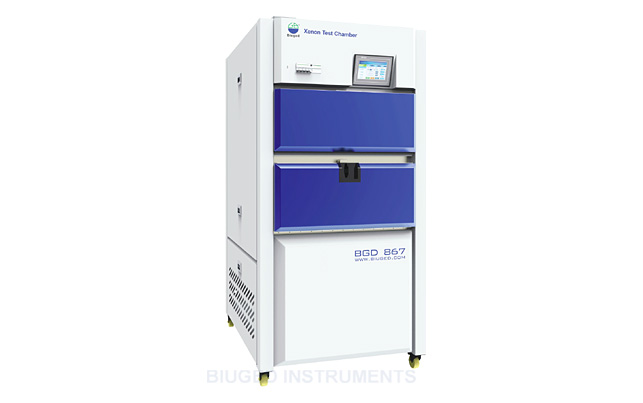

BIUGED – Phòng thử nghiệm Xenon tủ
Main Technical Parameters
■ Xenon Lamp：Three 1.8 kW xenon lamps（imported from America）
■ Filter：Daylight filter （Also can choose extended UV filter or window glass filter）
■ Lamp Lifetime: Near 1,500 hours
■ Exposure Area：2,800 cm2 (can put 25 standard samples 150mm×70mm)
■ Adjustable Irradiance Range：
0.3～0.75 W/m2 (Single point of control：340nm)
0.5～1.35 W/m2 (Single point of control：420nm)
30 W/m2～90 W/m2 (Full spectrum ：from 300～400nm)
■ Controlling Irradiance Point：340nm or 420nm or 300nm～400nm
■ Adjustable Black Panel Temperature Range：RT～100℃
■ Adjustable Relative Humidity of Working Room：10%～75%（Light）；10%～95%（Dark）；
■ Interior Material of Chamber：Aluminium profiles
■ Exterior Material of Chamber：Powder coating
■ Overall Size(W×D×H)：950mm×1200mm×2000mm
■ Net Weight：385 kg
■ Power Supply：Three-phase AC 380V，50 or 60Hz；Max. Current: 16A; Rated Power: 7.5kW
■ Requirements of Compressed air：Clean，oilless compressed air with 0.5MPa pressure，Max. air supply is near 60L/min. Average air consumption is 10L/min～30L/min（Depends on testing standard）
