Technical Data

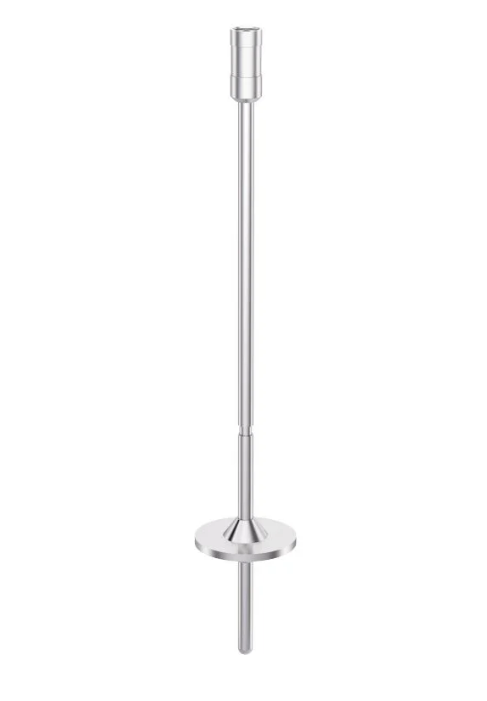

| Spindle geometry | Disc |
| Connection | Thread M2.5 LH |
| Quick plug connector | yes |
| Hook connector | yes |
| Diameter | 21.1 mm |
| Immersion depth | 49.2 mm |
| Spindle length | 133 mm |
| Mounting Bracket | yes |
| Sample container: | 600mL beaker low |
| Viscosity Accuracy (FSR) | 1 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Min. FSR match ROTAVISC lo-vi | 187.5 mPa.s |
| Max. FSR match ROTAVISC lo-vi | 37492 mPa.s |
| Min. FSR match ROTAVISC me-vi | 2000 mPa.s |
| Max. FSR match ROTAVISC me-vi | 400000 mPa.s |
| Min. FSR match ROTAVISC hi-vi I | 4000 mPa.s |
| Max. FSR match ROTAVISC hi-vi I | 800000 mPa.s |
| Min. FSR match ROTAVISC hi-vi II | 16000 mPa.s |
| Max. FSR match ROTAVISC hi-vi II | 3200000 mPa.s |
| Material in contact with medium | AISI 316L / 1.4571 |
| Dimensions (W x H x D) | 22 x 135 x 22 mm |
| Weight | 0.017 kg |
