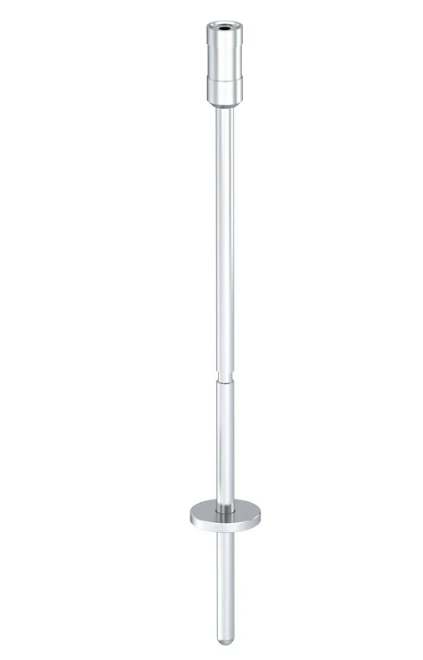

Standard spindle
Technical Data
| Spindle geometry | Disc |
| Connection | Thread M2.5 LH |
| Quick plug connector | yes |
| Hook connector | yes |
| Diameter | 12.6 mm |
| Immersion depth | 50 mm |
| Spindle length | 115 mm |
| Mounting Bracket | yes |
| Sample container: | 600mL beaker low |
| Viscosity Accuracy (FSR) | 1 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Min. FSR match ROTAVISC lo-vi | 599.9 mPa.s |
| Max. FSR match ROTAVISC lo-vi | 119974 mPa.s |
| Min. FSR match ROTAVISC me-vi | 6400.0 mPa.s |
| Max. FSR match ROTAVISC me-vi | 1280000 mPa.s |
| Min. FSR match ROTAVISC hi-vi I | 12800.0 mPa.s |
| Max. FSR match ROTAVISC hi-vi I | 2560000 mPa.s |
| Min. FSR match ROTAVISC hi-vi II | 51200 mPa.s |
| Max. FSR match ROTAVISC hi-vi II | 10240000 mPa.s |
| Material in contact with medium | AISI 316L / 1.4571 |
| Dimensions (W x H x D) | 14 x 117 x 14 mm |
| Weight | 0.011 kg |
