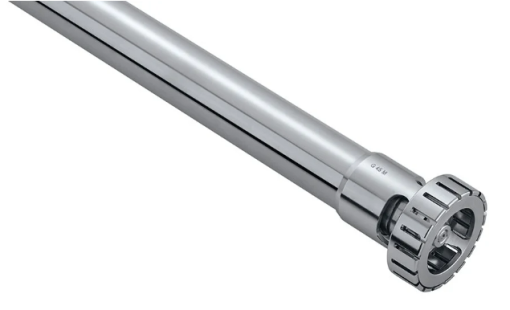

Suitable for dispersing instrument T 50 digital
Working range: 0,5 – 15 l
Stator diameter: 45 mm
Immersion depth: 70 – 260 mm
Materials in contact with medium: FFPM, SIC, AISI 316L
Suitable for solvents: yes
Max. temperature: 180 °C
Sterilization methods: all methods
Technical Data
| Volume range (H2O) | 0.5 – 15 l |
| Stator diameter | 45 mm |
| Rotor diameter | 40.5 mm |
| Circumferential speed max. | 21.2 m/s |
| Immersion depth | 70 – 250 mm |
| Shaft length | 300 mm |
| Material in contact with medium | FFPM / WC /AISI 316L |
| pH range | 2 – 13 |
| Suitable for solvents | yes |
| Working temperature max. | 180 °C |
| Sterilization methods | wet chemical |
| Vacuum | 1 mbar |
| Pressure max. | 6 bar |
| Ultimate fineness, suspensions | 25 – 50 µm |
| Ultimate fineness, emulsions | 5 – 20 µm |
| Weight | 0.52 kg |
