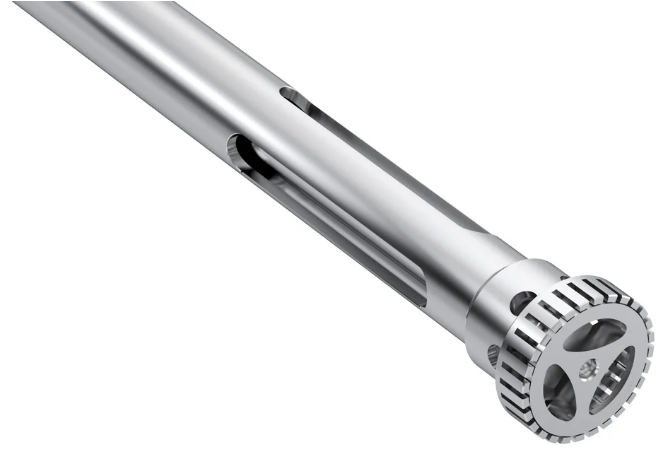

Dispersing tool for the disperser T 65 basic/digital
Type of sealing and bearing: Ball-bearing and ceramic plain bearing
Product-touching material: AISL 316L, ceramic
Suitable for solvents: Yes
Sterilizable: all methods (except ball bearing)
Suitable for vacuum: No
Max. working temperature [°C]: 180
Shaft length [mm]: 520
Diameter stator/rotor [mm]: 65/58
Gap between [mm]: 0.5
Recommend emersion depth [mm]: 94 – 450
Recommend working range [ml]: 2,000 – 40,000
Technical Data
| Volume range (H2O) | 2 – 40 l |
| Stator diameter | 65 mm |
| Rotor diameter | 53 mm |
| Gap between rotor and stator | 0.5 mm |
| allowable Speed max. | 9500 rpm |
| Circumferential speed max. | 28.8 m/s |
| Immersion depth | 90 – 450 mm |
| Shaft length | 520 mm |
| Material in contact with medium | AISI 316L, ceramic |
| pH range | 2 – 13 |
| Suitable for solvents | yes |
| Working temperature max. | 180 °C |
| Sterilization methods | all methods |
| Ultimate fineness, suspensions | 20 – 50 µm |
| Ultimate fineness, emulsions | 5 – 15 µm |
| Weight | 3.91 kg |
